Tutorial spatial

This tutorial is for running NS-Forest for spatial transcriptomic gene panel design.

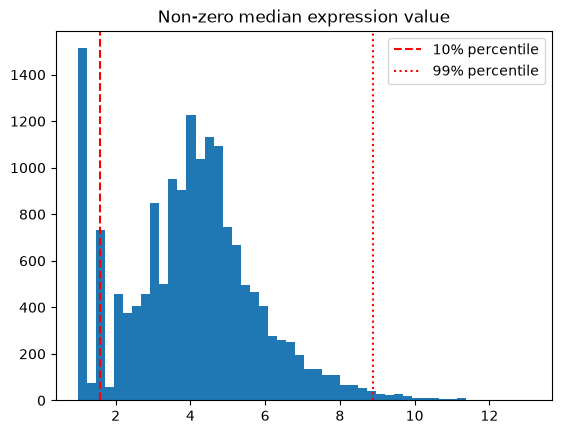

The first step is filtering non-zero median expression of all genes represented in the AnnData object. This is done by taking the expression values for each gene for all cells, removing the zero values, and calculating the median per gene. Median is used instead of mean because mean is sensitive to outliers and skewed with noise. We can visualize these genes’ non-zero median expression in a histogram and plot the 10th and 99th percentiles. We remove genes with relatively low or high expression. High expression can effect the spatial imaging results due to “optical crowding”, resulting from excessive fluorescent signal from high transcript dense regions (https://www.nature.com/articles/s41467-021-27798-0).

The next step is filtering by transcript length. In spatial transcriptomics, probes are designed to target each gene; genes with more probes tend to have higher sensitivity to be detected (https://pmc.ncbi.nlm.nih.gov/articles/PMC10054990/). The minimum transcript length is to ensure high detection. The transcript lengths are from Gencode’s BioMart. Due to multiple transcript lengths associated with a single gene, the longest length is chosen. The NS-Forest package contains the gencode files for human (v47) and mouse (vM36), which can be found in the gencode_annotation folder. The default minimum transcript length is 700. This value is adjustable depending on the organ and species. For example, when looking at a mouse brain dataset, we chose 700 to include Sst (721bp), which is a well known neuronal inhibitory marker gene.

Note: adata.var.index should be unique. It is recommended that the adata.var_names be the ensembl_id, but gene_symbol should work.

After running spaceTx_genefilter, the standard NS-Forest pipeline is run, including prep_medians, prep_binary_score, and nsforesting.NSForest. This pipeline outputs a set of 1-6 markers per cell type that can be used for spatial transcriptomic gene panel.

Setting up environment

[1]:

import pandas as pd
import scanpy as sc
import nsforest as ns
from nsforest import utils

[2]:

# %cd /path/to/NSForest_v4.2
data_folder = "demo_data/"
cluster_header = "cluster"
output_folder = "demo_outputs/"
file = data_folder + "adata_layer1.h5ad"
adata = sc.read_h5ad(file)
adata

[2]:

AnnData object with n_obs × n_vars = 871 × 16497
    obs: 'cluster'
    layers: None

Filtering genes to optimize spatial gene panels.

[3]:

adata = ns.pp.spaceTx_genefilter(adata, gencode_folder = "gencode_annotation")
adata

Non-zero median expression percentile limits:
0.10    1.584962
0.99    8.898539
dtype: float64

FILTER 1: 13944 out of 16497 total genes passed the expression filter (lower_percentile = 0.1, upper_percentile = 0.99).

FILTER 2: 14278 out of 16497 total genes passed the transcript length filter (min_txLength = 700).

FINAL SELECTION: 12147 out of 16497 total genes passed both filters.

[3]:

AnnData object with n_obs × n_vars = 871 × 12147
    obs: 'cluster'
    layers: None

Calculating medians and binary scores per cluster

[4]:

adata = ns.pp.prep_medians(adata, cluster_header)
adata = ns.pp.prep_binary_scores(adata, cluster_header)

Calculating medians per cluster: 100%|██████████| 16/16 [00:00<00:00, 17.44it/s]

Saving medians as adata.varm.medians_cluster
median: 0.0
mean: 1.841
std: 2.523
Only positive genes selected. 9434 positive genes out of 12147 total genes
--- 0.9969689846038818 seconds ---

Calculating binary scores per cluster: 100%|██████████| 16/16 [00:41<00:00,  2.59s/it]

Saving binary scores as adata.varm.binary_scores_cluster
median: 0.119
mean: 0.208
std: 0.251
--- 41.60901188850403 seconds ---

Running NS-Forest

[5]:

outputfilename_prefix = cluster_header
results = ns.nsforesting.NSForest(adata, cluster_header, save_supplementary = True, save = True, output_folder = output_folder, outputfilename_prefix = outputfilename_prefix)

Running NS-Forest version 4.2

Preparing adata...
Pre-selecting genes based on binary scores...
        BinaryFirst_high Threshold (mean + 2 * std): 0.709
        Average number of genes after gene_selection in each cluster: 578.5625
Saving number of genes selected per cluster as...
demo_outputs/cluster_gene_selection.csv
--- 0.0251314640045166 seconds ---

Number of clusters to evaluate: 16
1 out of 16:
        e1_e299_SLC17A7_L5b_Cdh13
        Pre-selected 1128 genes to feed into Random Forest.
        NSForest-selected markers: ['LINC00507']
        fbeta: 0.96
        precision: 0.978
        recall: 0.893
2 out of 16:
        g1_g48_GLI3_Astro_Gja1
        Pre-selected 444 genes to feed into Random Forest.
        NSForest-selected markers: ['LINC00498']
        fbeta: 0.95
        precision: 1.0
        recall: 0.792
3 out of 16:
        g2_g27_APBB1IP_Micro_Ctss
        Pre-selected 284 genes to feed into Random Forest.
        NSForest-selected markers: ['SYK']
        fbeta: 0.922
        precision: 1.0
        recall: 0.704
4 out of 16:
        g3_g18_GPNMB_OPC_Pdgfra
        Pre-selected 251 genes to feed into Random Forest.
        NSForest-selected markers: ['COL20A1']
        fbeta: 0.833
        precision: 1.0
        recall: 0.5
5 out of 16:
        g4_g9_MOG_Oligo_Opalin
        Pre-selected 401 genes to feed into Random Forest.
        NSForest-selected markers: ['CNDP1']
        fbeta: 0.976
        precision: 1.0
        recall: 0.889
6 out of 16:
        i10_i16_TSPAN12_Vip_Mybpc1
        Pre-selected 807 genes to feed into Random Forest.
        NSForest-selected markers: ['TSPAN12', 'CHRNB3']
        fbeta: 0.804
        precision: 0.9
        recall: 0.562
7 out of 16:
        i11_i6_EGF_Vip_Mybpc1
        Pre-selected 1463 genes to feed into Random Forest.
        NSForest-selected markers: ['FZD8']
        fbeta: 0.556
        precision: 0.667
        recall: 0.333
8 out of 16:
        i1_i90_COL5A2_Ndnf_Car4
        Pre-selected 193 genes to feed into Random Forest.
        NSForest-selected markers: ['COL5A2', 'TRPC3']
        fbeta: 0.845
        precision: 1.0
        recall: 0.522
9 out of 16:
        i2_i77_LHX6_Sst_Cbln4
        Pre-selected 212 genes to feed into Random Forest.
        NSForest-selected markers: ['LHX6', 'GRIK3']
        fbeta: 0.857
        precision: 1.0
        recall: 0.545
10 out of 16:
        i3_i56_BAGE2_Ndnf_Cxcl14
        Pre-selected 108 genes to feed into Random Forest.
        NSForest-selected markers: ['SCN5A', 'GREM2']
        fbeta: 0.642
        precision: 0.826
        recall: 0.339
11 out of 16:
        i4_i54_MC4R_Ndnf_Cxcl14
        Pre-selected 163 genes to feed into Random Forest.
        NSForest-selected markers: ['ADAM33', 'NDNF', 'CD36']
        fbeta: 0.783
        precision: 0.929
        recall: 0.481
12 out of 16:
        i5_i47_TRPC3_Ndnf_Car4
        Pre-selected 771 genes to feed into Random Forest.
        NSForest-selected markers: ['TRPC3', 'CA2']
        fbeta: 0.828
        precision: 0.962
        recall: 0.532
13 out of 16:
        i6_i44_GPR149_Vip_Mybpc1
        Pre-selected 302 genes to feed into Random Forest.
        NSForest-selected markers: ['CXCL12', 'SHISA8']
        fbeta: 0.735
        precision: 0.87
        recall: 0.455
14 out of 16:
        i7_i31_CLMP_Ndnf_Cxcl14
        Pre-selected 827 genes to feed into Random Forest.
        NSForest-selected markers: ['RASSF3', 'PAX6', 'CPLX3']
        fbeta: 0.841
        precision: 0.947
        recall: 0.581
15 out of 16:
        i8_i27_SNCG_Vip_Mybpc1
        Pre-selected 1094 genes to feed into Random Forest.
        NSForest-selected markers: ['SNCG', 'EDNRA']
        fbeta: 0.759
        precision: 0.923
        recall: 0.444
16 out of 16:
        i9_i22_TAC3_Vip_Mybpc1
        Pre-selected 809 genes to feed into Random Forest.
        NSForest-selected markers: ['MCTP2', 'ANGPT1']
        fbeta: 0.806
        precision: 1.0
        recall: 0.455
--- 63.476983308792114 seconds ---

Saving supplementary table as...
demo_outputs/cluster_supplementary.csv
Saving markers table as...
demo_outputs/cluster_markers.csv
using median

Calculating medians per cluster: 100%|██████████| 16/16 [00:00<00:00, 331.98it/s]

Saving supplementary table as...
demo_outputs/cluster_markers_onTarget_supp.csv
Saving supplementary table as...
demo_outputs/cluster_markers_onTarget.csv

Saving final results table as...
demo_outputs/cluster_results.csv
Saving final results table as...
demo_outputs/cluster_results.pkl

[6]:

results

[6]:

	software_version	cluster_header	clusterName	clusterSize	f_score	precision	recall	TN	FP	FN	TP	marker_count	NSForest_markers	binary_genes	onTarget
0	4.2	cluster	e1_e299_SLC17A7_L5b_Cdh13	299	0.959741	0.978022	0.892977	566	6	32	267	1	[LINC00507]	[SLC17A7, LINC00508, TBR1, ANKRD33B, NPTX1, LI...	0.792614
1	4.2	cluster	g1_g48_GLI3_Astro_Gja1	48	0.950000	1.000000	0.791667	823	0	10	38	1	[LINC00498]	[SLC25A18, LINC00498, FGFR3, EMX2OS, PAPLN, SL...	1.000000
2	4.2	cluster	g2_g27_APBB1IP_Micro_Ctss	27	0.922330	1.000000	0.703704	844	0	8	19	1	[SYK]	[CSF2RA, SYK, MS4A7, IKZF1, FGD2, CX3CR1, C1QC...	1.000000
3	4.2	cluster	g3_g18_GPNMB_OPC_Pdgfra	18	0.833333	1.000000	0.500000	853	0	9	9	1	[COL20A1]	[COL20A1, STK32A, OLIG2, KLRC2, CSPG4, B3GNT7,...	1.000000
4	4.2	cluster	g4_g9_MOG_Oligo_Opalin	9	0.975610	1.000000	0.888889	862	0	1	8	1	[CNDP1]	[MOBP, CD22, CNDP1, TF, ASPA, PPP1R14A, CLMN, ...	1.000000
5	4.2	cluster	i10_i16_TSPAN12_Vip_Mybpc1	16	0.803571	0.900000	0.562500	854	1	7	9	2	[TSPAN12, CHRNB3]	[TSPAN12, LINC01539, TMC5, CHRNB3, ANGPT1, DCN...	0.783762
6	4.2	cluster	i11_i6_EGF_Vip_Mybpc1	6	0.555556	0.666667	0.333333	864	1	4	2	1	[FZD8]	[EGF, FZD8, BRAT1, RHPN1, SLC47A2, GOLGA2P8, L...	1.000000
7	4.2	cluster	i1_i90_COL5A2_Ndnf_Car4	90	0.845324	1.000000	0.522222	781	0	43	47	2	[COL5A2, TRPC3]	[NMBR, BMP2, COL5A2, ADRA1D, TRPC3, PAPSS2, BM...	0.618906
8	4.2	cluster	i2_i77_LHX6_Sst_Cbln4	77	0.857143	1.000000	0.545455	794	0	35	42	2	[LHX6, GRIK3]	[LHX6, CALB1, TAC1, RSPO3, TRBC2, GRIK3, RNF15...	0.942058
9	4.2	cluster	i3_i56_BAGE2_Ndnf_Cxcl14	56	0.641892	0.826087	0.339286	811	4	37	19	2	[SCN5A, GREM2]	[SCN5A, ST8SIA2, GREM2, SYT10, ARHGAP18, ZNF42...	0.531211
10	4.2	cluster	i4_i54_MC4R_Ndnf_Cxcl14	54	0.783133	0.928571	0.481481	815	2	28	26	3	[ADAM33, NDNF, CD36]	[EGFL6, ADAM33, PGAM1P5, CHRNB3, NDNF, CD36, A...	0.351766
11	4.2	cluster	i5_i47_TRPC3_Ndnf_Car4	47	0.827815	0.961538	0.531915	823	1	22	25	2	[TRPC3, CA2]	[SOX13, SSTR2, TRPC3, PAPSS2, CA2, HAPLN1, TAC...	0.448483
12	4.2	cluster	i6_i44_GPR149_Vip_Mybpc1	44	0.735294	0.869565	0.454545	824	3	24	20	2	[CXCL12, SHISA8]	[CXCL12, IL12RB2, SHISA8, IGFBP5, PXDN, ASIC4,...	0.773301
13	4.2	cluster	i7_i31_CLMP_Ndnf_Cxcl14	31	0.841121	0.947368	0.580645	839	1	13	18	3	[RASSF3, PAX6, CPLX3]	[FGF10, RASSF3, CLMP, PAX6, SP8, CPLX3, TGFBR2...	0.629389
14	4.2	cluster	i8_i27_SNCG_Vip_Mybpc1	27	0.759494	0.923077	0.444444	843	1	15	12	2	[SNCG, EDNRA]	[SNCG, EDNRA, MMRN2, FBN3, RGS2, SCML4, NRP2, ...	1.000000
15	4.2	cluster	i9_i22_TAC3_Vip_Mybpc1	22	0.806452	1.000000	0.454545	849	0	12	10	2	[MCTP2, ANGPT1]	[BSPRY, MCTP2, OFD1P10Y, FHDC1, ARHGAP29, ANGP...	0.752842
